The rotary piston vacuum pump set transforms vacuum metallurgy by delivering quick and reliable vacuum creation. Engineers combine rotary piston and Roots pumps to achieve rapid pump-down and high efficiency. Users benefit from flexible displacement ratios, which adapt to different process needs. Automation features simplify operation and reduce errors. Energy-saving technology lowers operational costs while maintaining strong performance.
Vacuum Metallurgy Overview
Core Processes and Needs
Vacuum metallurgy stands as a vital branch of materials science and metallurgical engineering. This field focuses on processing metals and materials in controlled low-pressure environments. Engineers use vacuum technology to refine, melt, and treat metals, ensuring high purity and improved properties. Several core processes define vacuum metallurgy:
- Vacuum melting produces high-quality alloys by removing impurities.
- Vacuum refining adjusts the chemical composition of metals for specific applications.
- Vacuum sintering enhances the strength and durability of materials.
Vacuum induction melting plays a key role in secondary metallurgy. This method refines metals in a liquid state and allows precise control over chemical composition. Special alloys, which react with atmospheric oxygen, require a vacuum or inert gas atmosphere. These processes support the development of advanced materials for industries such as aerospace and electronics.
Materials science relies on vacuum metallurgy to create metals with superior characteristics. Metallurgical engineering uses these processes to meet the demands of modern technology. The vacuum environment minimizes contamination and supports the production of reliable materials.
Role of Vacuum Technology
Vacuum technology forms the backbone of vacuum metallurgy. It enables engineers to control pressure and temperature during metal processing. The vacuum level must match the requirements of each process. For example, vacuum melting often needs pressures between 10⁻³ to 10⁻⁵ Pa, while high-purity applications may require levels as low as 10⁻⁶ Pa.
Precise vacuum control ensures consistent quality in metals and materials. It prevents the loss of valuable elements and maintains the desired composition.
Materials science benefits from accurate temperature adjustments, which help form alloys and distribute elements evenly. Metallurgical engineering demands strict pressure control to avoid fluctuations that could affect product quality. The table below highlights why precise vacuum control matters:
| Control Aspect | Importance in Metallurgy |
|---|---|
| Temperature | Ensures correct alloy formation |
| Pressure | Maintains composition and purity |
Vacuum metallurgy depends on these controls to produce metals and materials that meet industry standards. Engineers achieve reliable results by maintaining narrow temperature ranges and stable pressure conditions.

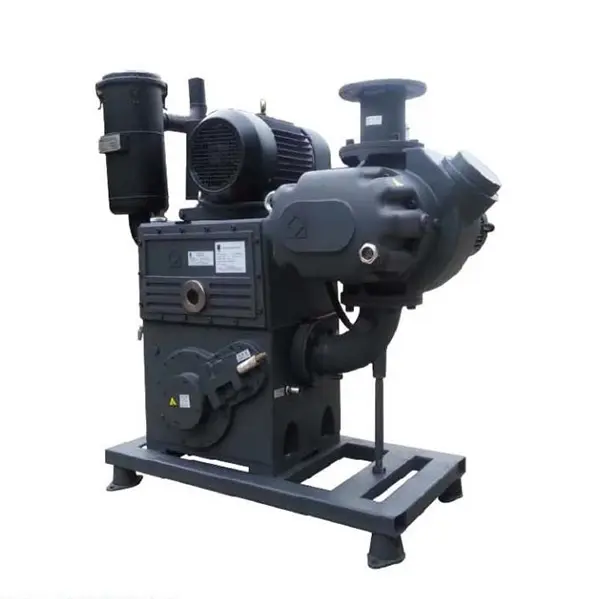

Rotary Piston Vacuum Pump Set Fundamentals
Working Principle
The rotary piston vacuum pump set uses a simple but effective design to create and maintain a vacuum. The rotary piston vacuum pump acts as both the pre-vacuum and backing pump in the system. It removes air from the chamber, lowering the pressure quickly. This action prepares the system for the Roots pump to take over and reach even lower pressures. The rotary piston vacuum pump set works well in many industrial environments because it handles a wide range of pressures.
The joysun series stands out for its flexibility and automation. Operators can select the right displacement ratio for their process. For low vacuum tasks, a small displacement ratio between 2:1 and 4:1 works best. For medium or high vacuum needs, a larger ratio from 4:1 to 10:1 provides better results. The system also features high automation, making operation simple and maintenance easy. The table below shows the main features of the joysun series:
| Feature | Description |
|---|---|
| Automation | High automation, simple operation, easy maintenance, safe, reliable, and durable running. |
| Displacement Ratio (Low Vacuum) | Recommended small displacement ratio (2:1 to 4:1) for low vacuum operations. |
| Displacement Ratio (Medium/High Vacuum) | Recommended larger displacement ratio (4:1 to 10:1) for medium or high vacuum operations. |
| Efficiency | High vacuum, high exhausting efficiency in medium or high vacuum, wide working range, obvious energy-saving. |
| Structure | Integrated rack, compact structure, small required space. |
Integration with Roots Pump
The rotary piston vacuum pump set often works together with a Roots pump to achieve the best results in vacuum metallurgy. The Roots pump serves as the main vacuum pump, while the rotary piston vacuum pump set acts as the pre-vacuum and backing pump. This combination offers several advantages:
- High vacuum and high exhausting efficiency, especially in medium or high vacuum ranges.
- Reliable performance in vacuum metallurgy and vacuum heat treatment.
- Effective achievement of precise vacuum levels needed for advanced metal processing.
Engineers choose this setup because it delivers fast pump-down times and stable vacuum conditions. The rotary piston vacuum pump set supports a wide range of applications, making it a valuable tool in modern metallurgy.
Applications in Vacuum Metallurgy
Melting and Casting
Rotary piston vacuum pump sets play a vital role in melting and casting within vacuum metallurgy. Engineers use these pumps to create optimal chemical thermodynamic and kinetic conditions for metallurgical reactions. These conditions are difficult to achieve at atmospheric pressure. The pump set reduces the solubility of gaseous impurities in metals such as copper and zinc, which leads to higher purity in the final products. The system lowers the temperature needed for volatilization of metals or impurities, improving separation efficiency. This process helps avoid contamination of pure metal and alloys by gaseous impurities, enhancing overall product quality.
Vacuum melt casting has been a key method since the 1920s for nickel-based alloys. This technique produces items with fewer harmful impurities and better mechanical properties. The introduction of high-temperature vacuum furnaces in the 1950s expanded casting applications to high-temperature alloys and rare metals. Today, engineers rely on rotary piston vacuum pump sets for large volume chambers that require significant pumping speeds due to substantial gas loads. The JZH series supports medium to high vacuum requirements, making it ideal for copper and zinc alloy production, single crystal fabrication, and the creation of copper-rich particles.
Rotary piston vacuum pump sets ensure reliable operation and low maintenance, which improves process speed and efficiency in demanding environments.
Heat Treatment
Vacuum heat treatment is essential for producing metals with superior mechanical properties. Rotary piston vacuum pump sets provide high working pressure and large pumping capacity, which enhances the efficiency of heat treatment processes. These pumps withstand harsh environments, making them suitable for vacuum processing tasks such as vacuum smelting, vacuum drying, and vacuum heat treatment of copper and zinc alloys.
Engineers use the joysun series for its high vacuum and exhausting efficiency in medium or high vacuum ranges. The integrated rack design offers a compact structure and minimal space requirements. High automation allows for simple operation and easy maintenance. These features support continuous operation in challenging conditions, ensuring consistent quality in pure metal and copper-rich particles.
- Rotary piston vacuum pump sets deliver fast pump-down times, which increase throughput in vacuum heat treatment.
- The system maintains stable vacuum conditions, which is critical for achieving uniform results in copper and zinc processing.
- Durability and reliability reduce downtime, supporting efficient vacuum processing and heat treatment processes.
Surface Coating
Surface coating in vacuum metallurgy requires precise control of vacuum conditions. Rotary piston vacuum pump sets enable accurate film deposition by sustaining the required vacuum pressure throughout the coating process. This precision is crucial for high-quality surface coatings on copper, zinc, and pure metal substrates. The pumps help prevent oxidation and ensure high purity during melting and solidification, which is vital for the integrity and performance of surface coatings.
| Evidence Description | Impact on Surface Coating Outcomes |
|---|---|
| Rotary piston vacuum pumps enable precise film deposition by sustaining the required vacuum pressure throughout the coating process. | This precision in maintaining vacuum conditions is critical for achieving high-quality surface coatings in vacuum metallurgy. |
| Rotary piston pumps help maintain the vacuum conditions that prevent oxidation and ensure high purity during melting and solidification. | High purity and prevention of oxidation are essential for the integrity and performance of surface coatings applied. |
Rotary piston vacuum pump sets are essential for maintaining vacuum conditions in processes like thin film coating and electroplating. The joysun series supports a wide working range with significant energy-saving capabilities. Its compact design fits easily into various setups, making it suitable for copper and zinc surface coating applications. Engineers achieve consistent results in vacuum processing, ensuring the production of pure metal and copper-rich particles with superior surface properties.
The joysun series combines high automation, reliability, and durability, making it a preferred choice for vacuum heat treatment, vacuum processing, and surface coating in metallurgy.
Pump Set Advantages
Fast Pump-Down
Rotary piston vacuum pump sets deliver rapid pump-down times. This speed shortens the time needed to reach target vacuum levels in metallurgical processes. Operators can start production cycles faster, which increases overall throughput. The joysun series supports this advantage with its integrated rack design, which allows for compact installation and smooth operation. High automation ensures that the system responds quickly to process demands, reducing delays and boosting productivity.
Process Control and Quality
Rotary piston vacuum pumps maintain stable vacuum levels during critical metallurgical steps. This stability protects the integrity of the process and improves the quality of the final product. Many metallurgical applications rely on these pumps for their economical operation and ability to handle large chamber volumes. They can achieve an ultimate vacuum of 10 microns, which is essential for ultra-clean environments. These features make rotary piston vacuum pumps a popular choice in heat treating and vacuum furnace industries. Their ability to manage gas throughput and outgassing from materials ensures consistent results.
Consistent vacuum levels lead to better control over temperature and composition, which directly impacts product quality.
Energy and Cost Savings
Modern rotary piston vacuum pump sets offer impressive energy savings. They operate at energy consumption levels similar to advanced rotary vane pumps. For example, some models use only 6.9 kW at 1 mbar, which reduces electricity costs over time. Frequency converters add further savings by adjusting power use based on demand. These improvements lower the total cost of ownership for vacuum furnaces and other metallurgical equipment. High efficiency means less wasted energy and more reliable performance.
Reliability and Maintenance
Rotary piston vacuum pumps operate at a slower pace, which reduces wear on internal components. This design leads to less frequent servicing and a longer lifespan. The joysun series features high automation, making routine maintenance simple and efficient. Operators can trust these pumps for continuous operation in demanding environments. The integrated rack structure also supports easy access for inspections and repairs.
- Longer service intervals reduce downtime.
- Simple maintenance procedures save labor costs.
- Reliable operation supports consistent production schedules.
Real-World Impact
Throughput Gains
Rotary piston vacuum pump sets increase production speed in vacuum metallurgy. Many factories report shorter pump-down times after installing the joysun series. For example, a copper alloy plant reduced vacuum chamber preparation time by 30%. This improvement allowed the plant to complete more cycles each day. The JZH series supports large chambers and heavy workloads. Operators can switch between processes quickly because the system responds fast to changes.
In the electronics industry, companies use the joysun series to boost output for vacuum coating lines. They achieve higher throughput without sacrificing quality.
Quality Improvements
Consistent vacuum levels lead to better product quality. The joysun series maintains stable pressure during melting, casting, and heat treatment. This stability prevents contamination and ensures uniform alloy composition. In aerospace manufacturing, engineers rely on the joysun series for titanium and nickel alloy production. These metals require strict control over impurities. The joysun system helps achieve the high purity needed for critical components.
A table shows how the joysun series improves quality in different applications:
| Application | Quality Benefit |
|---|---|
| Vacuum Melting | Fewer impurities, better alloys |
| Heat Treatment | Uniform hardness, strong metals |
| Surface Coating | Smooth, defect-free finishes |
Cost Reductions
Energy savings and low maintenance costs make the joysun series a smart investment. Many users see a drop in electricity bills after switching to this pump set. For instance, a vacuum furnace operator reported a 20% reduction in energy use. The integrated rack design also lowers installation costs. Maintenance teams spend less time on repairs because the system runs reliably.
Industries such as metallurgy, electronics, and aerospace choose the joysun series for its ability to cut costs while improving performance.
The joysun rotary piston vacuum pump set delivers measurable gains in speed, quality, and cost efficiency across many fields.
The joysun series rotary piston vacuum pump set transforms vacuum metallurgy by delivering faster cycles, higher efficiency, and improved product quality. Key features support these results:
| Feature | Benefit in Metallurgy |
|---|---|
| Durability | Handles tough processes with steady output |
| Lubrication System | Maintains reliability at all pressure levels |
| Cooling Options | Offers flexibility for different setups |
| Gas Ballast Valves | Manages vapor loads for better efficiency |
| Triplex Piston Design | Reduces vibration, improving final quality |
Professionals seeking advanced vacuum solutions can explore the joysun series for reliable, automated, and flexible performance.
FAQ
What industries use the joysun series rotary piston vacuum pump set?
- Metallurgy
- Electronics
- Aerospace
- Chemical processing
These industries choose the joysun series for its speed, reliability, and energy efficiency.
How does the joysun series improve energy savings?
The joysun series uses advanced automation and efficient motors. These features lower electricity use. Many users report reduced energy bills after switching to this pump set.
Can the joysun series handle large vacuum chambers?
Yes. The joysun series supports large chambers with high gas loads. Its compact design fits many setups, making it ideal for both small and large-scale operations.
What maintenance does the joysun rotary piston vacuum pump set require?
| Task | Frequency |
|---|---|
| Oil checks | Weekly |
| Filter replacement | Monthly |
| General inspection | Quarterly |
Operators find maintenance simple due to the system’s high automation and easy access.
